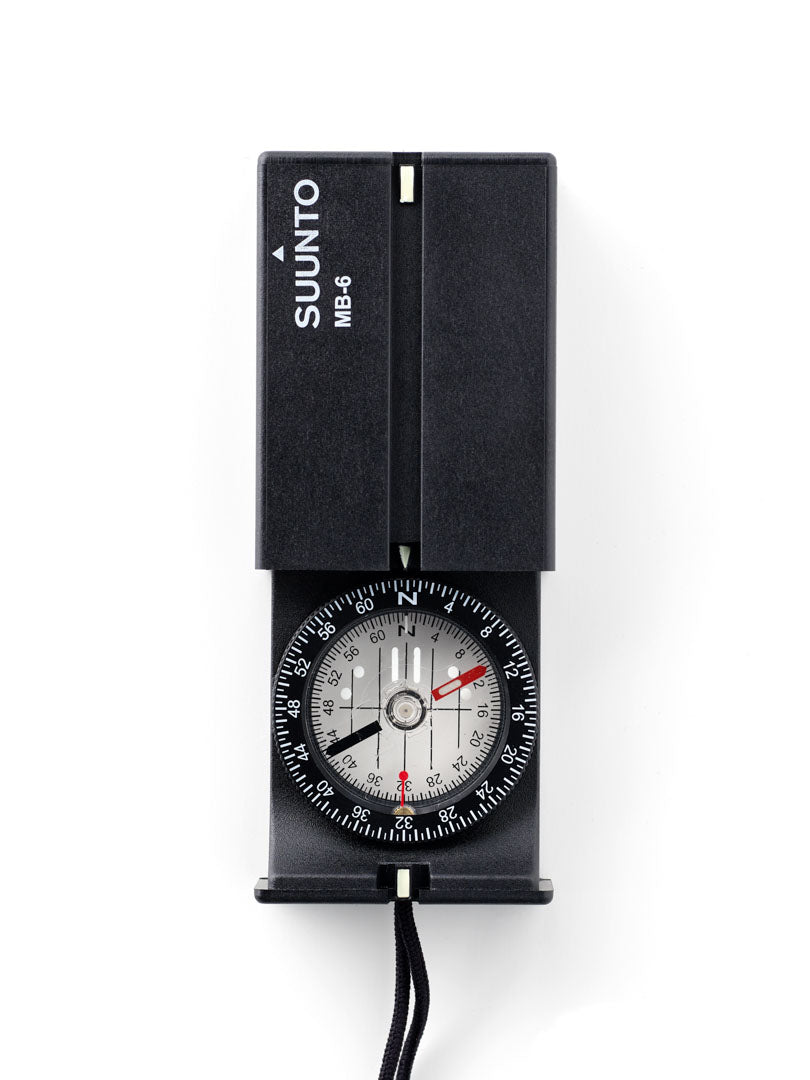

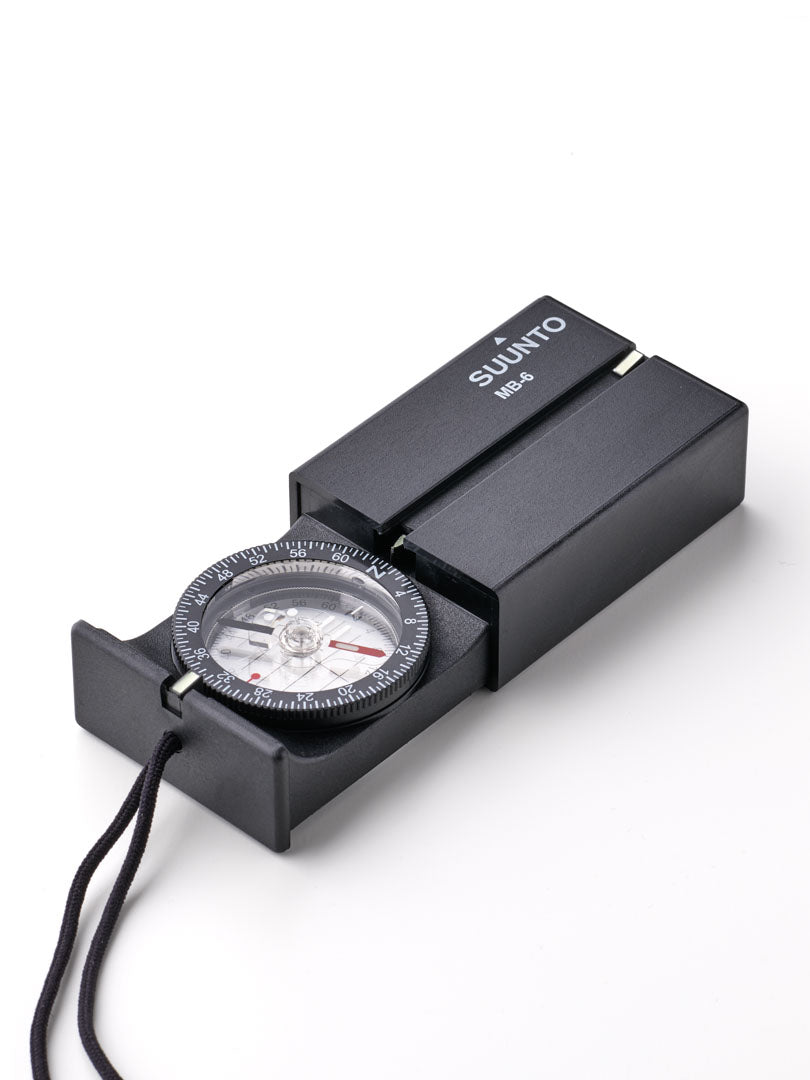

Protractor diameter:
42 mm
Primary direction scale:
On top of rotating protractor alligned with outer edge, MILS (Mil-radians) scale 0-6400' clockwise with 50' resolution and a number every 400' except when number swapped for cardinal marking. Diameter: 40 mm.
 scale 0-6400' clockwise with 50' resolution and a number every 400' except when number swapped for cardinal marking. Diameter: 40 mm.)
Cardinal markings:
N on protractor
Magnetic balancing:
Northern hemisphere with much of southern hemisphere covered as well.
Needle design:

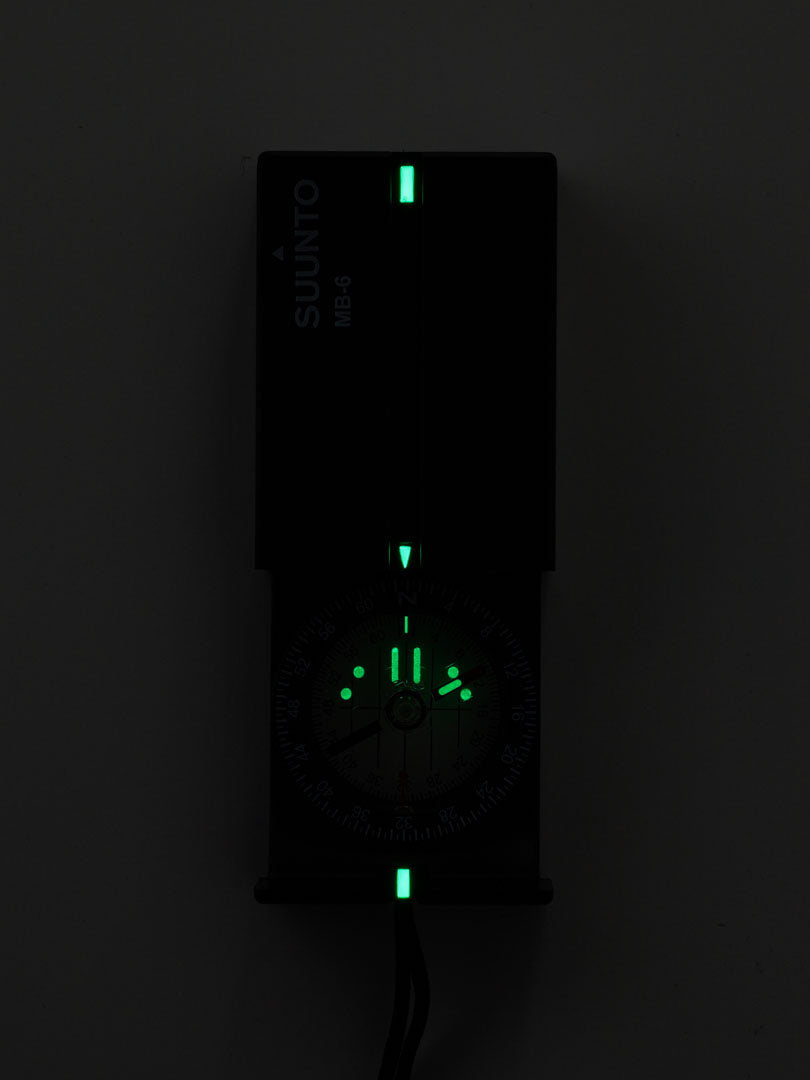

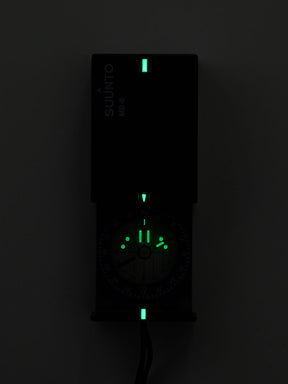

Red for north and black for south. The needle has a luminescent area in the north end. The markings of the needle are the same on both the upper and the lower side. The center of the needle is transparent and the damping shape of the needle is also transparent. The hub of the needle features a NdFeB ring shaped magnet.
Needle length:
32 mm
Needle movement damping method:
Non-freezing transparent liquid filled compass capsule with the absence of bubbles in the operating temperature range at sea level.
Compass capsule:
Hermetically sealed transparent PMMA capsule, diameter 33 mm.
Orienting arrow:
Two white lines to allign with the north end of the needle. Two white dots on each side of the orienting arrow at + and - 60 degrees used to navigate around large obstacles.
Declination corection:
The angle between orienting arrow and orieting lines can be adjusted to compensate for declination. The angle is adjusted by turning a sprocket using a flat screw driver delivered on the lanyard. The declination correction scale is in mils with a 50 mils resolution and is marked with a number every 400 mils. The declination correction scale is full mils degrees.
Protractor index:
A luminescent arrow shape next to the protractor.
