Suunto item: SS051086000
NSN code: 6605580008586
Contact Us for Military Procurement
For defence procurement, tender participation, or inquiries about custom compass development:
Our dedicated defence sales team is ready to assist with your requirements. You can also follow us via Facebook and Instagram.

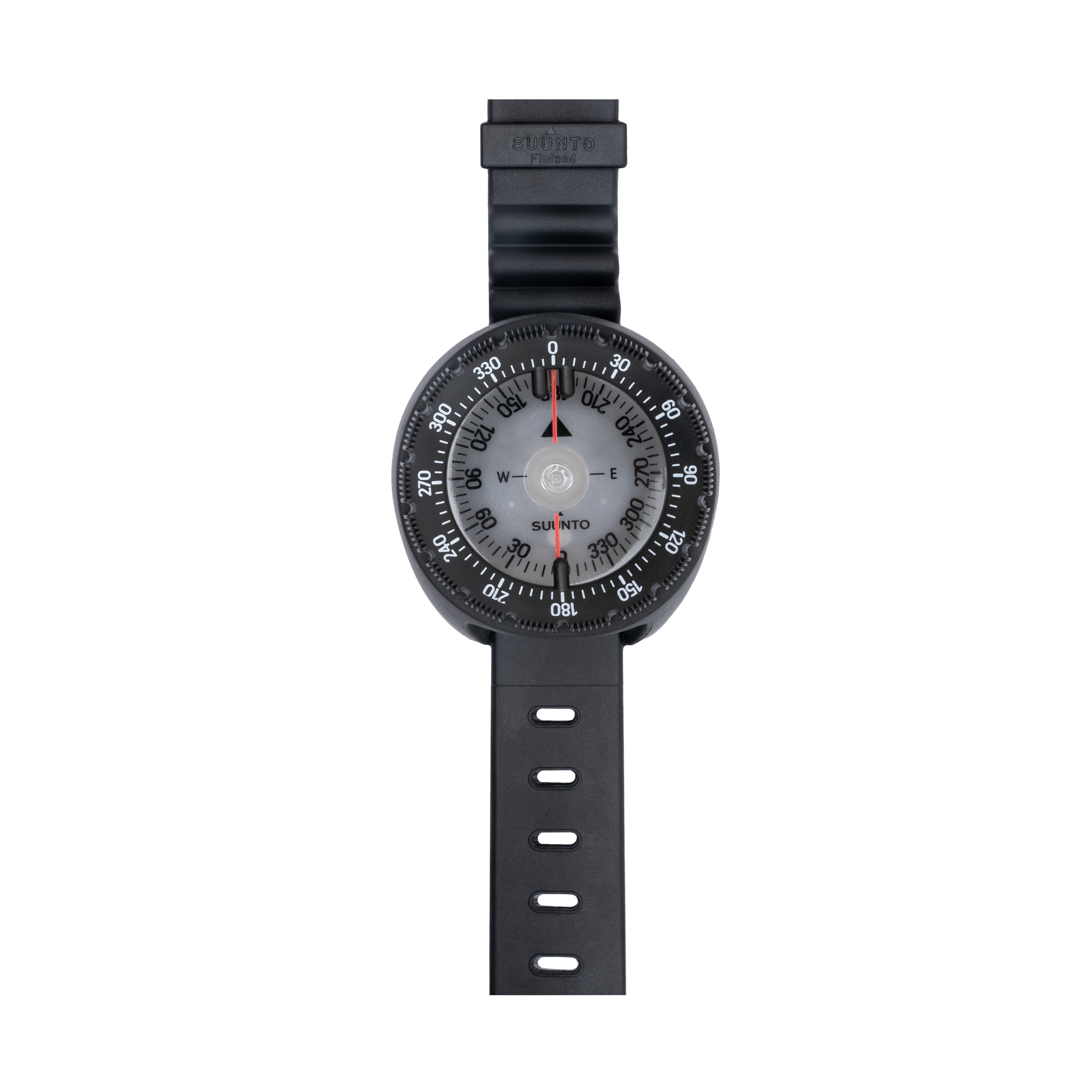

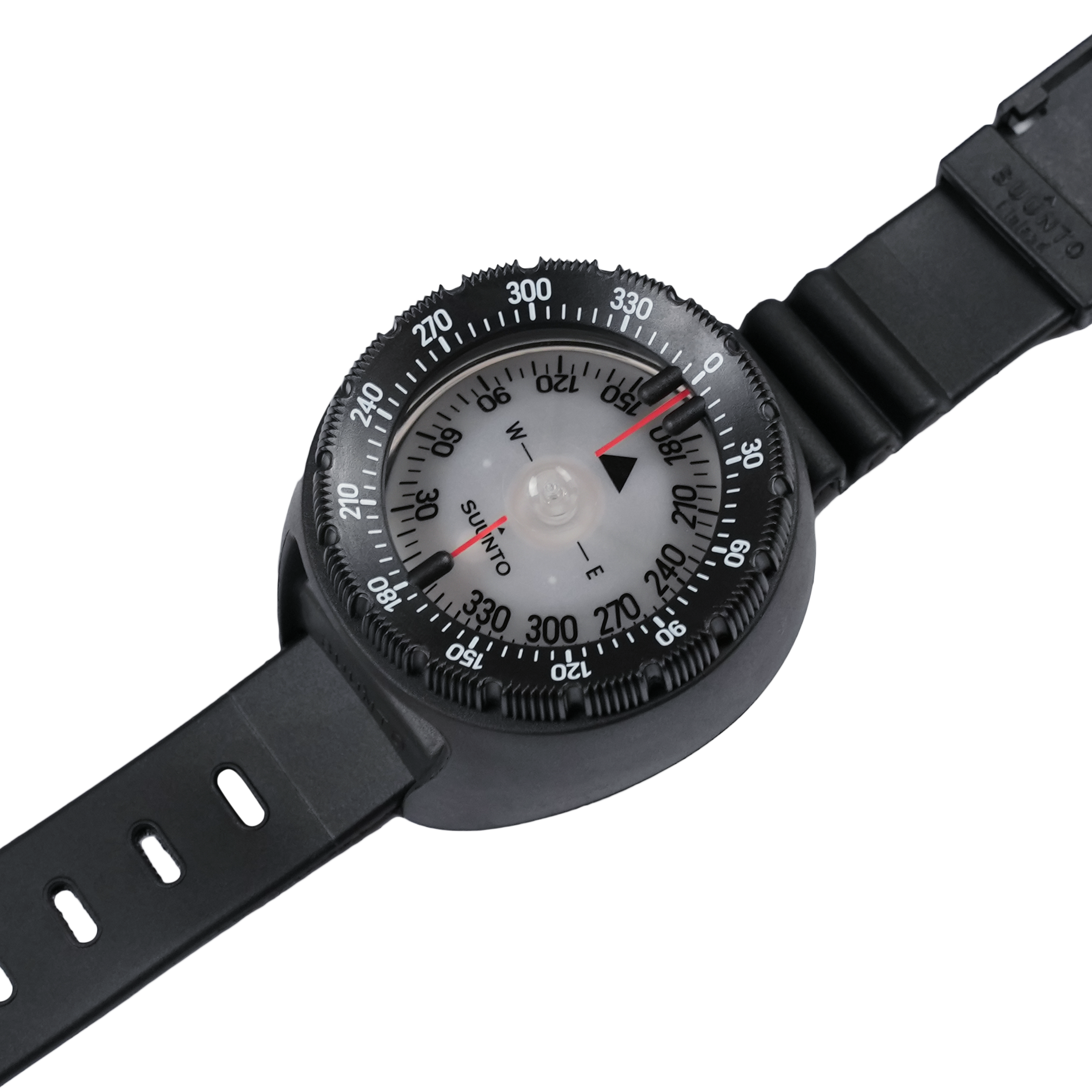

Wrist mounted dive compass with direct reading of bearing when sighting and and protractor for setting direction. The housing protects the compass against shock. The compass has a 18˚ tilt margin. The compass card is luminescent.
Produet dimenslons：
65.5x65.5x43.7 mm
Net welght:
160 g
Package dimensions:
135x95x60 mm
Gross weight:
228g
Operational temperature range:
-30˚C .. +60˚C.
Water proofness:
Waterproof to all practical water depths. The cavities of the product will fill with wather and then drain.
Storage temperature range:
-30˚C .. +60˚C
Berry compliant:
Yes, no fiber material in the product
Protractor diameter:
59mm
Primary direction scale:
The compass card has a DEGREES 0-360 scale along the outside for direct reading from the side, with 5˚ resolution and a number every 30˚.
Cardinal markings:
N, W, E on compass card
Magnetic balancing:
Northern hemisphere with much of southern hemisphere covered as well.
Needle design:
Compass card with N, E and W cardinal directions on top. The outer side of the compass card has a DEGREES 0-360˚ scale with 5˚ resolution and a number every 30˚.
Needle length:
41 mm card
Needle movement damping method:
Non-freezing transparent liquid filled compass capsule with the absence of bubbles in the operating temperature range at sea level.
Compass capsule:
Hermetically sealed transparent PMMA capsule, diameter 49 mm.
Orienting arrow:
Bars extending from the rotating bezel on top of the liquid filled compass capsule.
Protractor index:
Red index line in the sighting window in front of direction scale on side of the luminescent compass card for direct reading of bearing and red line across the top of the compass capsule that extends to the inner edge of the protractor for bearing and back-bearing reading.

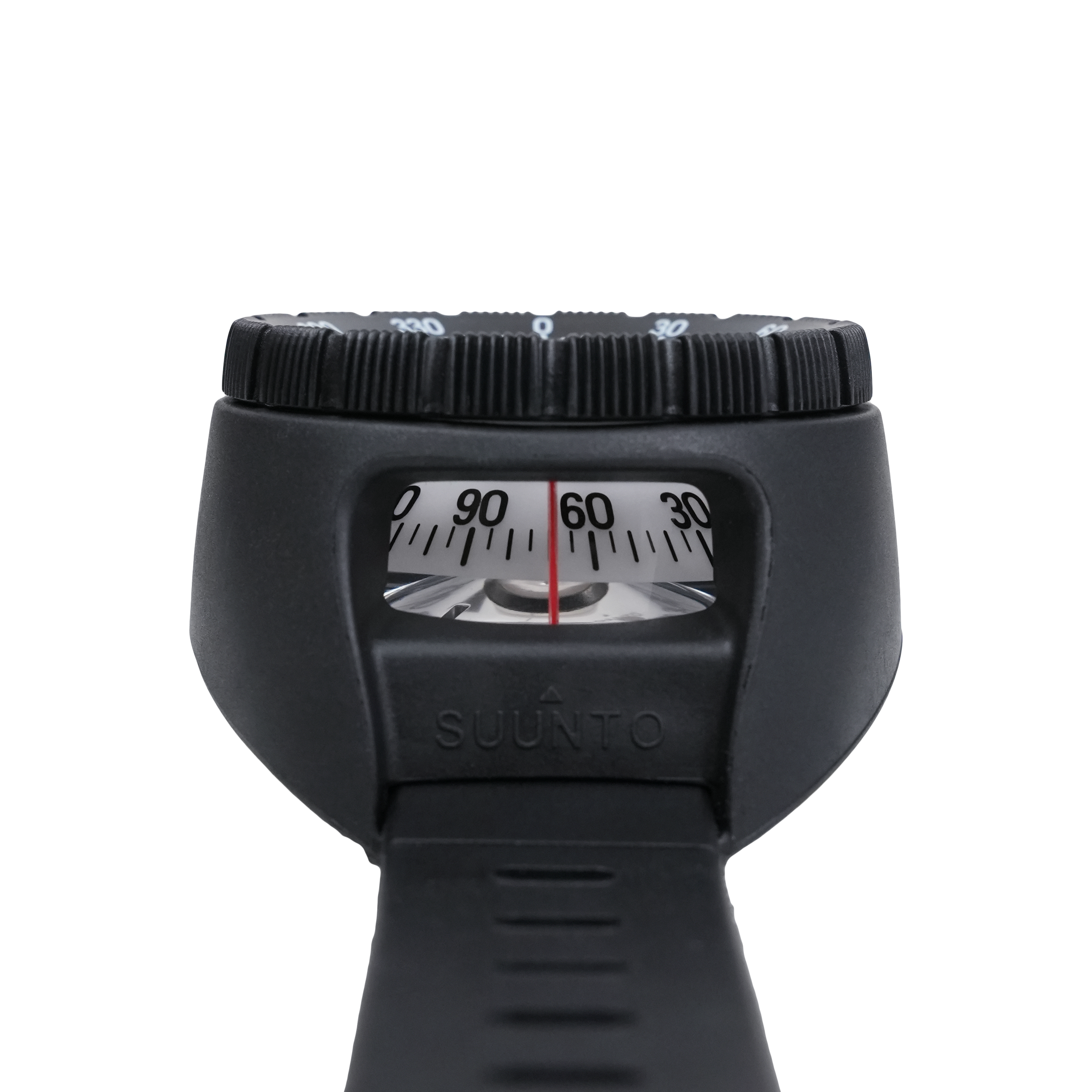

Side window:
Red index line in the sighting window in front of direction scale on side of the luminescent compass card for direct reading of bearing.
Open sight:
Red index line in the sighting window in front of direction scale on side of the luminescent compass card for direct reading of bearing.
Luminescent material:
SrAl2O4

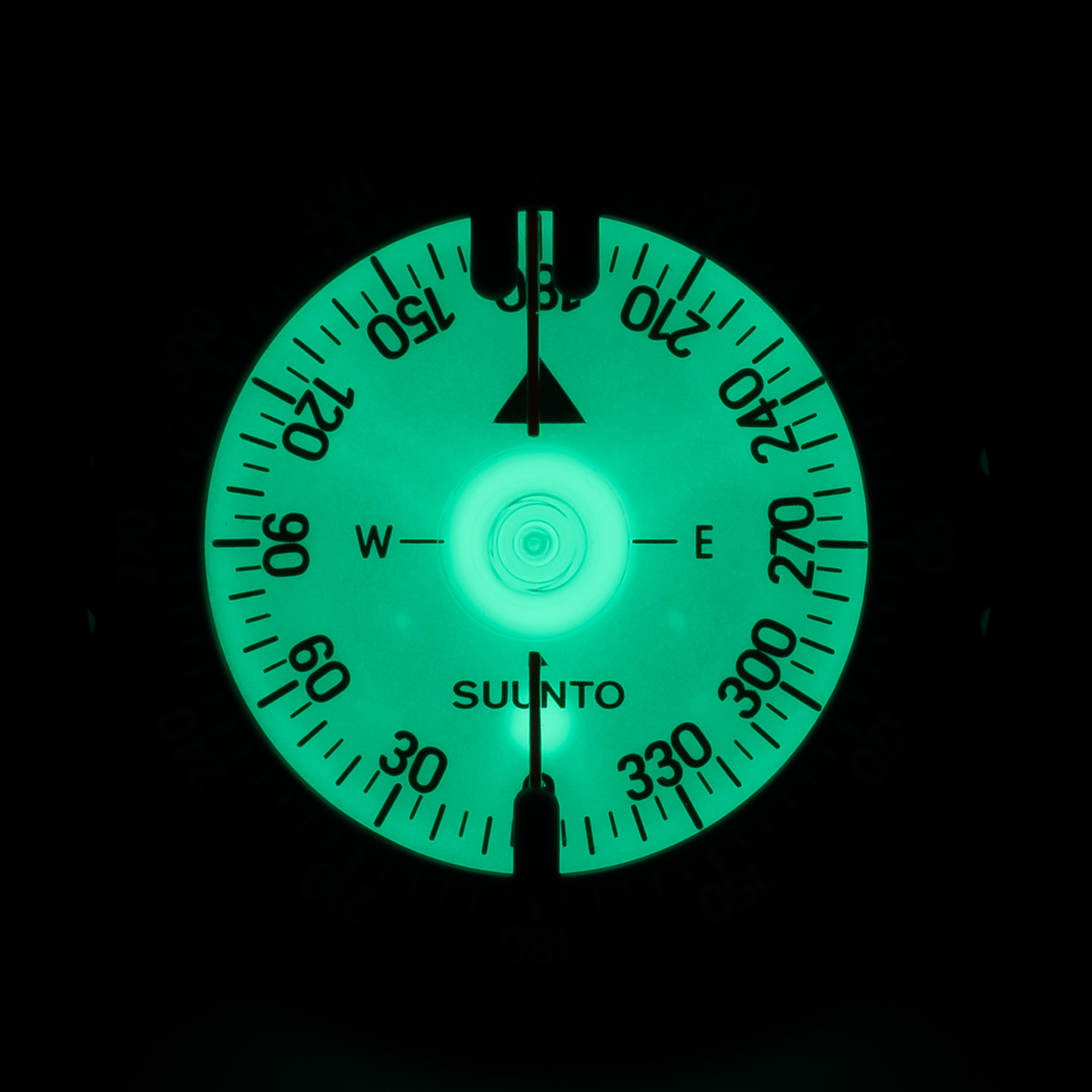

Compass card:
Fully luminescent with black print
Orienting arrow:
The bars of the protractor are seen dark on top of the luminescent card
Protractor index:
Line in front of luminescent compass card
Direction of travel:
Line in front of luminescent compass card
Strap:
TPU strap
Paper with product:
Yes
On line:
Yes
