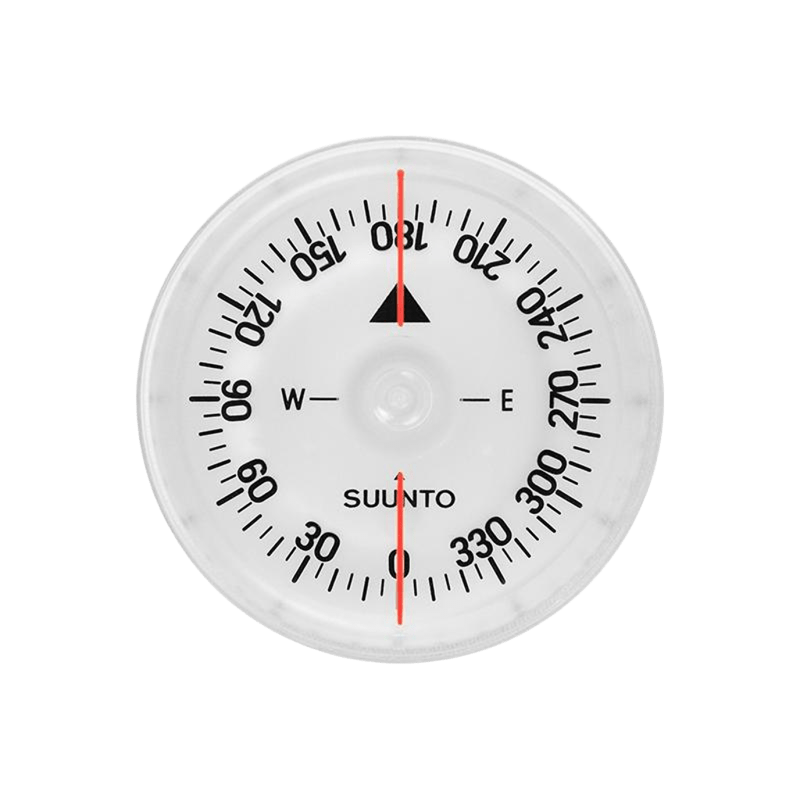

Suunto SK-8/Orca Capsule SH
€48,95
Compass capsule for building into dive or parachute navi boards or to use as spare capsule for Suunto SK-7 and SK-8 dive compasses.
Suunto SK-8
/Orca Capsule SH
Suunto item: SS021121000
Contact US
Contact Us for Military Procurement
For defence procurement, tender participation, or inquiries about custom compass development:
Our dedicated defence sales team is ready to assist with your requirements. You can also follow us via Facebook and Instagram.
Physical specifications
Produet dimenslons:
55x55x30 mm
Net welght:
40g
Package dimensions:
80x80x30 mm
Gross weight:
43g
Operational temperature range:
-30˚C .. +60˚C.
Water proofness:
Waterproof to all practical water depths as there is no cavity that can leak water in.
Storage temperature range:
-30˚C .. +60˚C
Berry compliant:
Yes, no fiber material in the product
Compass needle/card and protractor specifications
Protractor diameter:
59mm
Primary direction scale:
The compass card has a DEGREES 0-360 scale along the outside for direct reading from the side, with 5˚ resolution and a number every 30˚.
Cardinal markings:
N, W, E on compass card
Magnetic balancing:
Southern hemisphere.
Needle design:
Compass card with N, E and W cardinal directions on top. The outer side of the compass card has a DEGREES 0-360˚ scale with 5˚ resolution and a number every 30˚.
Needle length:
41 mm card
Needle movement damping method:
Non-freezing transparent liquid filled compass capsule with the absence of bubbles in the operating temperature range at sea level.
Compass capsule:
Hermetically sealed transparent PMMA capsule, diameter 49 mm.
Luminescent features
Luminescent material:
SrAl2O4
Compass card:
Fully luminescent with black print
Protractor index:
Line in front of luminescent compass card
Direction of travel:
Line in front of luminescent compass card
